Setting Up

Developing Android applications with Scala can be fun and rewarding. the code will be cleaner and simpler than the equilvant Java code. To get started, we need to install a few things. First off, the Java 6 JDK needs to be installed.

Install Java 1.6

Go to http://www.oracle.com/technetwork/java/index.html and select Java SE 6 Update 43 JDK or just go http://www.oracle.com/technetwork/java/javase/downloads/jdk6downloads-1902814.html

If you are on a Mac just type javac into a terminal to download java6 from apple.

Just follow the instructions and prompts from the java installer.

You have to use JDK 6 Android will not work if compiled with JDK 7.

Installing Android SDK

  1. Go to http://developer.android.com/sdk/index.html
  2. Click on “Use and existing IDE”
  3. Download the SDK.
  4. Extract the SDK to the root of your home directory.
  5. Download the NDK
  6. Extract the NDK to the root of your home directory.

On Mac and Linux

  1. Edit .bash_profile like this.
export ANDROID_HOME=~/android-sdk
export ANDROID_NDK_HOME=~/android-ndk
export PATH=$ANDROID_HOME/tools:$ANDROID_HOME/platform-tools:$ANDROID_NDK_HOME:$PATH

On Windows

  1. Right Click “My Computer”
  2. Click on the “Advacned Tab”
  3. Click the “Envirnment Variables” button at the bottom of the window
  4. Click the “New...” button under User Variables section.
  5. Set ANDROID_HOME as the variable Name and the Path to the SDK as the value
  6. Click OK
  7. Click The “New...” button again
  8. Set ANDROID_NDK_HOME as the variable Name and the Path to the NDK as the value
  9. Click OK.
  10. If PATH is defined under the user block click “Edit...” else click “New...”
  11. Add “%ANDROID_HOME%/tools;%ANDROID_HOME%/platform-tools;%ANDROID_NDK_HOME%;” to the Value section of path.
  12. Click OK.
  13. Click Apply.
  14. Click OK.

Installing an Android Platform

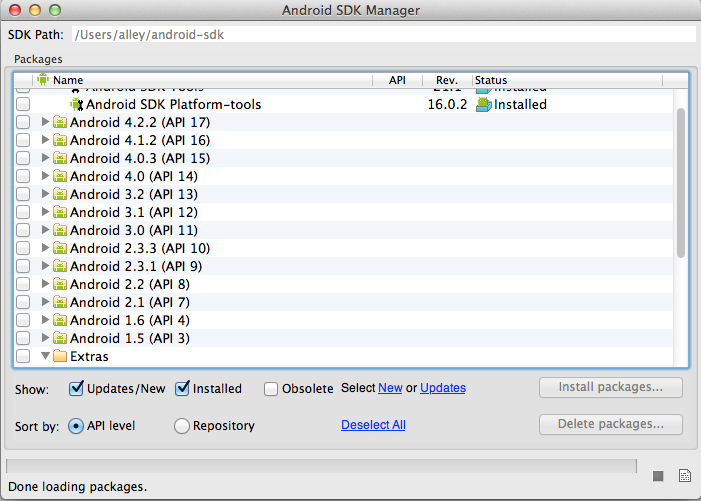

Now we have the basic android tools installed. We need to install the platforms

$ android
_images/android_update.png

Place a chehckmark next to “Android 4.0.3 (API 15)”. This is Ice Creame Sandwitch version of android. I would select any other versions you wish to target as well. Click the Install Packages button to download the platforms. You will be asked to accept the licences.

Creating an Android Virtual Device

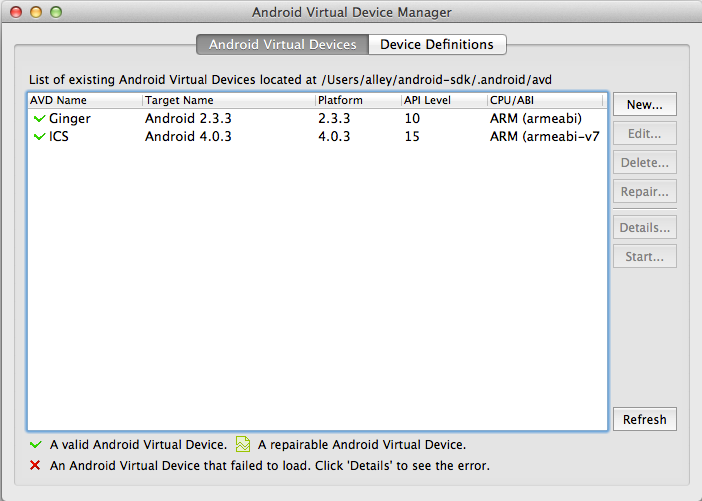

Now that we have the platforms installed, we need to create a virtual device. Android comes with a tool called the avd manager. To start the manager you type the command below.

$ android avd
_images/android_avd.png

With the manager up, we can start creating the avd.

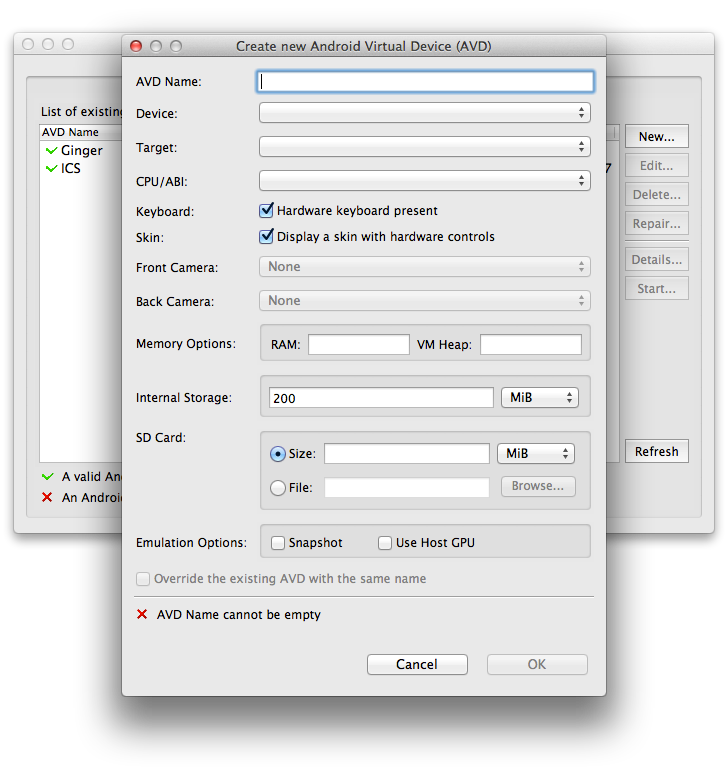

  1. Click the “New...” button on the right side of the manager.

avd_new

  1. Give the avd a name. I ususally use the code name for the version of android that will be installed.

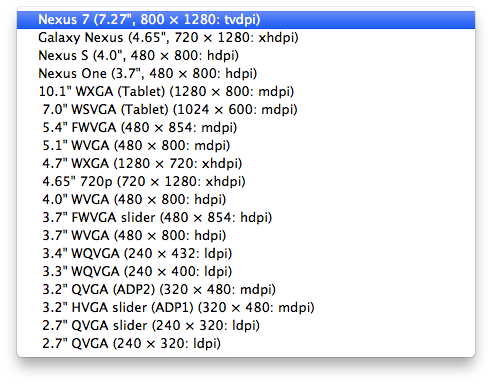

  2. Select Nexus S from the device list.

avd_device

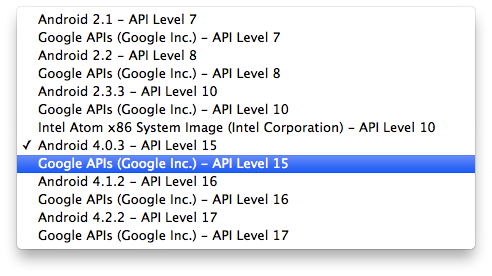

  1. Change the target name to Android 4.0.3

avd_api

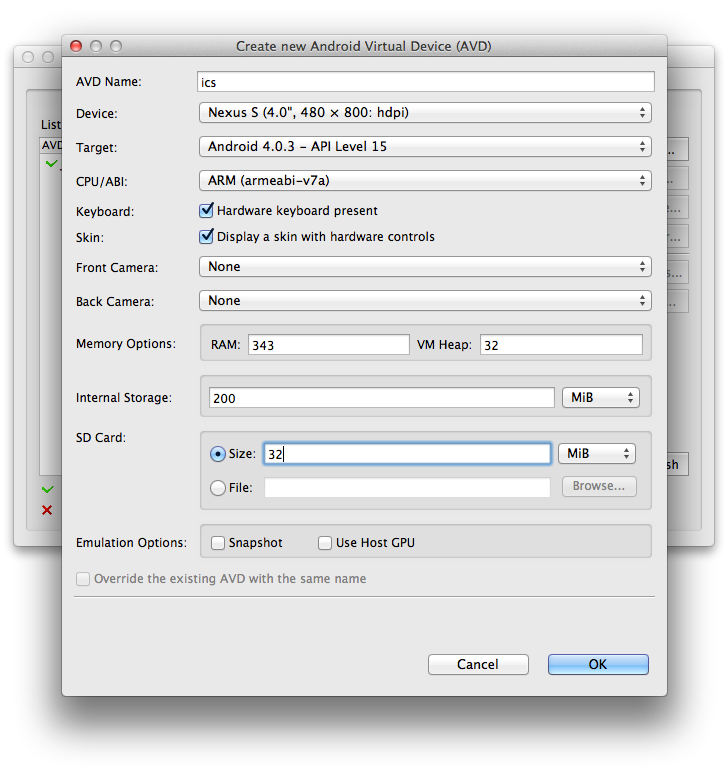

  1. Set the SD Card Size to 32 Mib

avd_filled

  1. Click OK
  2. Select the AVD you Created.

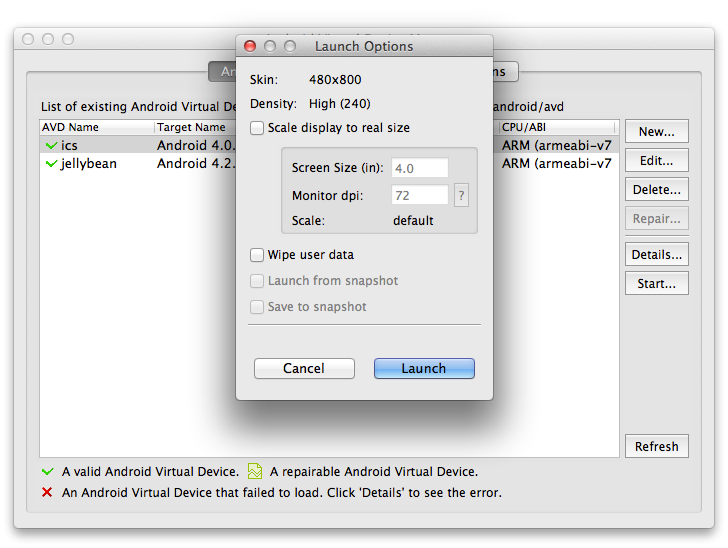

  3. Click Start...

avd_start

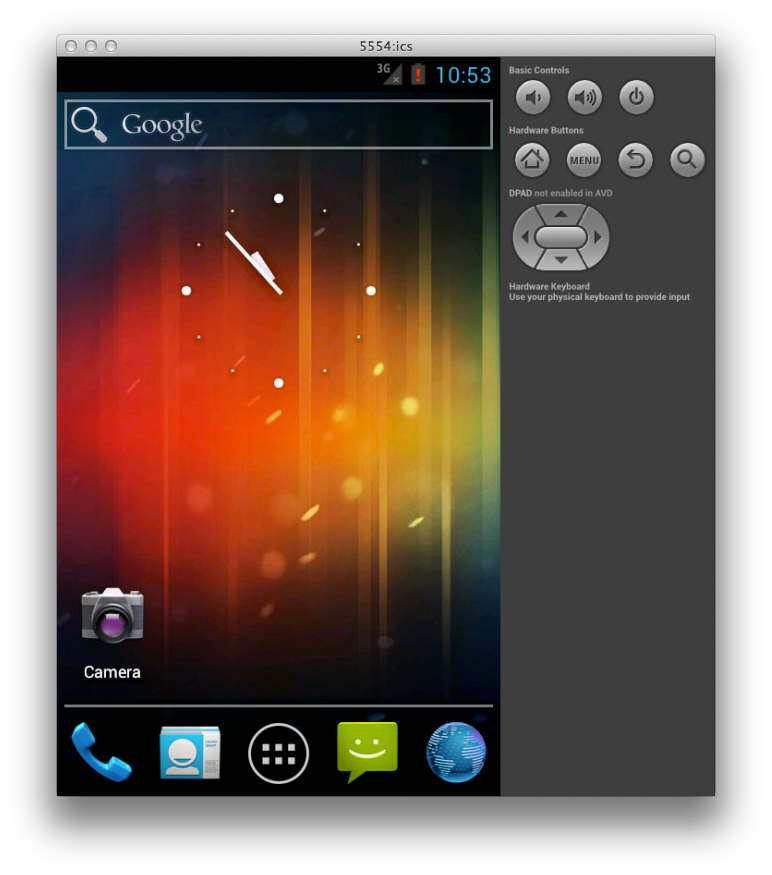

  1. Click Launch

emulator

Installing Scala

  1. Go to http://www.scala-lang.org/downloads
  2. Download the package for your system.
  3. Extract the file to the home directory

On Mac and Linux

  1. Edit .bash_profile like this.
export SCALA_HOME=~/scala
export PATH=$SCALA_HOME/bin:$PATH

On Windows

  1. Right Click “My Computer”
  2. Click on the “Advacned Tab”
  3. Click the “Envirnment Variables” button at the bottom of the window
  4. Click the “New...” button under User Variables section.
  5. Set SCALA_HOME as the variable Name and the Path to the Scala as the value
  6. Click OK
  7. If PATH is defined under the user block click “Edit...” else click “New...”
  8. Add “%SCALA_HOME%/bin;” to the Value section of path.
  9. Click OK.
  10. Click Apply.
  11. Click OK.

Installing SBT

  1. Go to http://www.scala-sbt.org/release/docs/Getting-Started/Setup.html
  2. Download the zip package
  3. Extract the package into the home directory

On Mac and Linux

  1. Edit .bash_profile like this.
export SBT_HOME=~/sbt
export PATH=$SBT_HOME/bin:$PATH

On Windows

  1. Right Click “My Computer”
  2. Click on the “Advacned Tab”
  3. Click the “Envirnment Variables” button at the bottom of the window
  4. Click the “New...” button under User Variables section.
  5. Set SBT_HOME as the variable Name and the Path to the SBT as the value
  6. Click OK
  7. If PATH is defined under the user block click “Edit...” else click “New...”
  8. Add “%SSBT_HOME%/bin;” to the Value section of path.
  9. Click OK.
  10. Click Apply.
  11. Click OK.

Install Project Templates

  1. Go to https://github.com/downloads/n8han/conscript/conscript-0.4.1.jar
  2. Run this command
$ java -jar conscript-0.4.1.jar
  1. If you are on Linux or Mac Run
$ curl https://raw.github.com/n8han/conscript/master/setup.sh | sh
  1. Now we can install giter8 by running:
$ cs n8han/giter8

This gives us the g8 command for our templates we will use to create the projects.

Adding IDE settings

For our development we are using InteliJ IDE with the scala plugin. Also we are going to use an SBT Plugin to add ide project config generation to the tool chain.

Installing IntelliJ IDE

  1. Go to http://www.jetbrains.com/idea/download/index.html
  2. Download the Community Edition.
  3. Run the installer
  4. Complete the installation process

Installing Scala Plugin for IntelliJ

  1. Open IntelliJ if not already open.
  2. Open the Preferences.
  3. On the Left hand side, Find and click on Plugins.
  4. Click the Browse Repository button
  5. In the search box type Scala
  6. Right click Scala and select Download and install
  7. Do the same for SBT
  8. Restart the IDE

Configure SBT to generate IntelliJ project

Open the plugins file under the .sbt directory in the home directory. If it’s not there just added it.

$ vim ~/.sbt/plugins/build.sbt

Once we have the file open we need to add this line below:

addSbtPlugin("com.github.mpeltonen" % "sbt-idea" % "1.3.0")

The next time we run sbt it will download this file and have the command available to any project.
